Zone Melting System
for the Purification of Special Materials
This fully automated zone melting system enables thermal purification of critical materials like germanium. Through high-precision process control, the system secures the customer’s internal supply of raw materials, making them independent of global export restrictions.
800 BAR
Test pressure
The Challenge
Regulatory Bottlenecks Endanger Production
Tightened regulations and export restrictions on critical raw materials from China have caused severe supply chain bottlenecks for high-purity materials across the industry. Alternative materials available on the open market are often too heavily contaminated for high-tech applications, rendering them unusable in their raw state.
The customer faced a strategic challenge: they needed to purify contaminated raw materials in-house to an ultra-pure standard to safeguard their own manufacturing operations.
The Requirement: A technologically advanced purification system capable of consistently maintaining extremely high process temperatures and precise, slow feed speeds over extended periods. In addition, the system needed to offer flexible, user-friendly control to transform contaminated special materials into high-purity inputs fully automatically and with high repeatability.
The Solution
Independence Through High-Tech Refining – Fully Automated In-House Purification

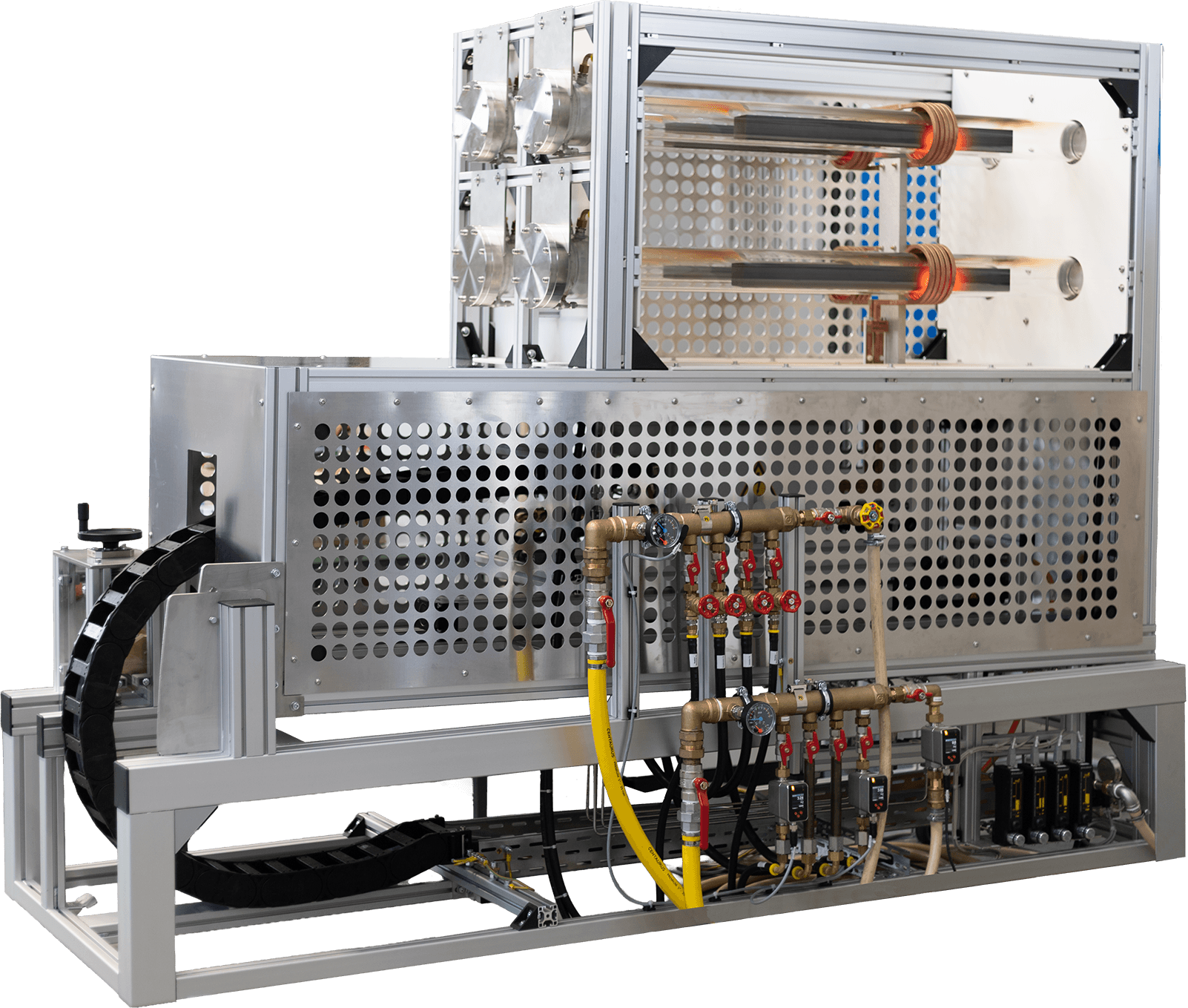

A specialized zone melting system was engineered for advanced process technology, operating at temperatures up to 1,100 °C. Featuring adjustable reactor tilt angles and high-efficiency induction heating, the system allows the customer to reliably and automatically segregate and remove impurities from raw materials.
Purpose
Purification of special materials (e.g., germanium)
Technical Highlights

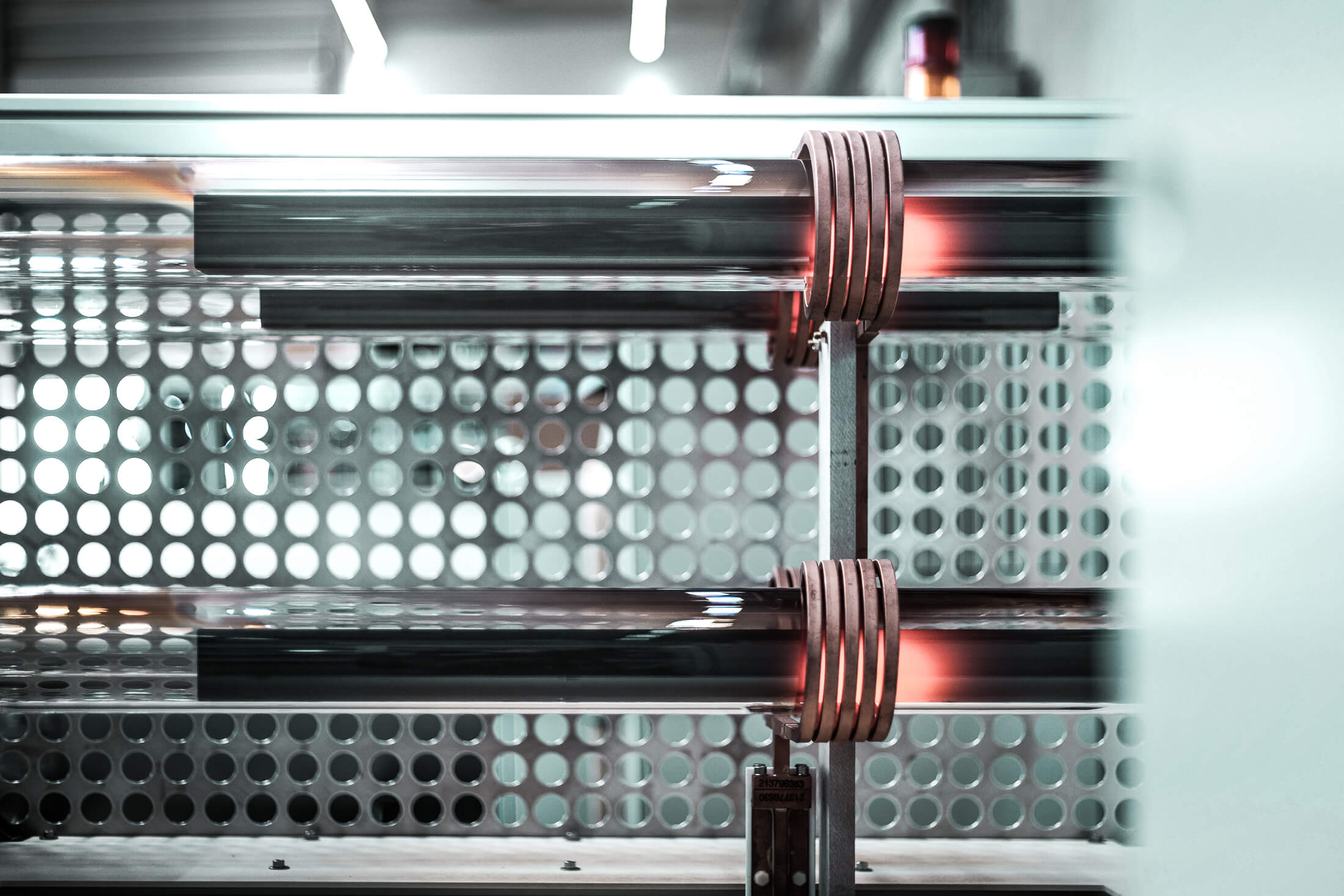

4-turn wound induction coil 0^∘ to 5^∘ adjustable reactor tilt for optimized process tuning.
Process Temperature
Up to 1,100 °C
Control & Software
Fully automated process control with comprehensive data logging and intuitive recipe management
Process Speeds
Adjustable from 1 to 15 mm/min
Power Output
15 kW per reactor tube
Futher information about Custom Furnaces
These processes have been combined for this plant and can also be used individually, depending on requirements.
